Single Acting Standard-Height Hydraulic Cylinders
Home /
Hydraulic Cylinders /
Single Acting Standard-Height Hydraulic Cylinders

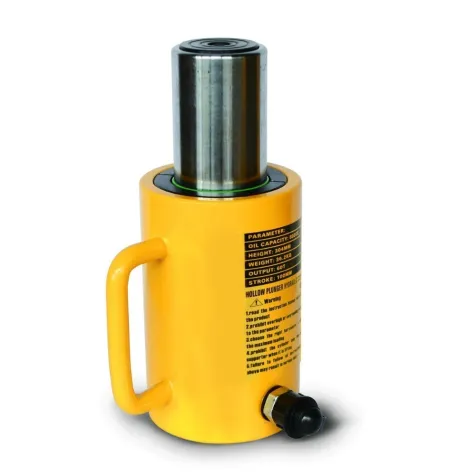

Single Acting Hydraulic Cylinder / Silinder Hidrolik 10 Ton 50mm Stroke - HHYG-1050 - BARTON
Description
Untuk Kapasitas 150Ton - 1000 Ton, Stroke Max. 300mm. Bisa Hubungi kami untuk preorder
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Download Catalogue
Tweet
Specifications
Model
HHYG-1050
Pump System
Single Acting
Cylinder Capacity @700 Bar
10 Ton / 111 KN
Stroke
50 mm
Effective Area
15.9 cm²
Oil Capacity
85 ml
Closed Height
122 mm
Extended Height
172 mm
Outside Diameter
68 mm
Inside Diameter
45 mm
Piston Rod Diameter
36 mm
Handle
No
Recommended Pump
Minimum 350cc
Packing Weight
3.1 kg
