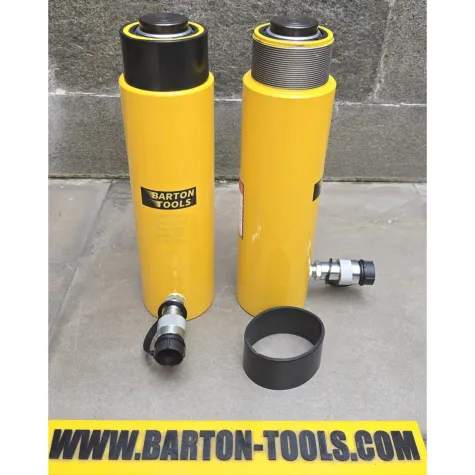

Single Acting Hydraulic Cylinder 30 Ton x 209mm Stroke RC-308 BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Tweet
Specifications
Model
RC-308
Pump System
Single Acting
Cylinder Capacity @700 Bar
30 Ton
Stroke
209 mm
Effective Area
42.1 cm²
Oil Capacity
880 ml
Closed Height
387 mm
Extended Height
596 mm
Outside Diameter
101 mm
Piston Rod Diameter
50 mm
Mounting Modes
Collar Thread
Base Hole Mounting
Plunger Thread
Unit Weight
18.1 kg
Packing Weight
20 kg
Packing Dimension
440x160x130 mm
