Single Acting RC Hydraulic Cylinders
Home /
Hydraulic Cylinders /
Single Acting RC Hydraulic Cylinders

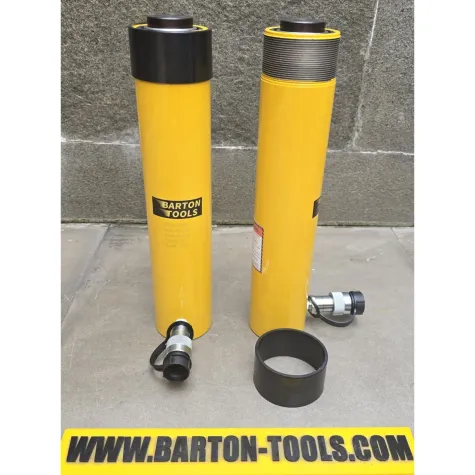

Single Acting Hydraulic Cylinder 25 Ton x 311mm Stroke RC-2512 BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Tweet
Specifications
Model
RC-2512
Pump System
Single Acting
Cylinder Capacity @700 Bar
25 Ton
Stroke
311 mm
Effective Area
33.2 cm²
Oil Capacity
1033 ml
Closed Height
425 mm
Extended Height
736 mm
Outside Diameter
85 mm
Piston Rod Diameter
50 mm
Mounting Modes
Collar Thread
Base Hole Mounting
Plunger Thread
Unit Weight
16.3 kg
Packing Weight
18 kg
Packing Dimension
460x170x120 mm
