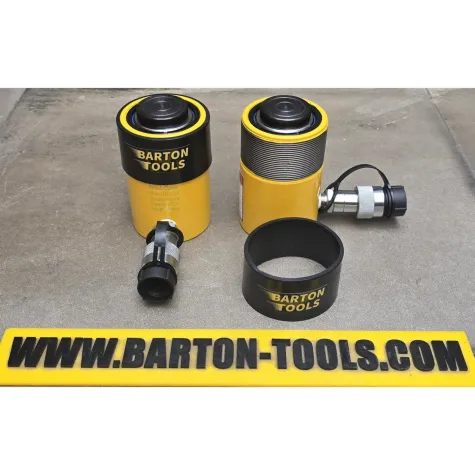

Single Acting Hydraulic Cylinder 25 Ton x 26mm Stroke RC-251 BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Tweet
Specifications
Model
RC-251
Pump System
Single Acting
Cylinder Capacity @700 Bar
25 Ton
Stroke
26 mm
Effective Area
33.2 cm²
Oil Capacity
86 ml
Closed Height
139 mm
Extended Height
165 mm
Outside Diameter
85 mm
Piston Rod Diameter
50 mm
Mounting Modes
Collar Thread
Base Hole Mounting
Plunger Thread
Unit Weight
5.9 kg
Packing Weight
7 kg
Packing Dimension
180x160x120 mm
