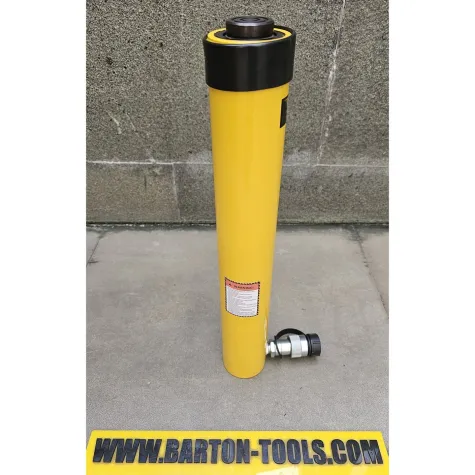

Single Acting Hydraulic Cylinder 15 Ton x 356mm Stroke RC-1514 BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Download Catalogue
Tweet
Specifications
Model
RC-1514
Pump System
Single Acting
Cylinder Capacity @700 Bar
15 Ton
Stroke
356 mm
Effective Area
20.3 cm²
Oil Capacity
723 ml
Closed Height
474 mm
Extended Height
830 mm
Outside Diameter
69 mm
Piston Rod Diameter
38 mm
Mounting Modes
Collar Thread
Base Hole Mounting
Plunger Thread
Unit Weight
11.8 kg
Packing Weight
13.0 kg
Packing Dimension
500x140x100 mm
