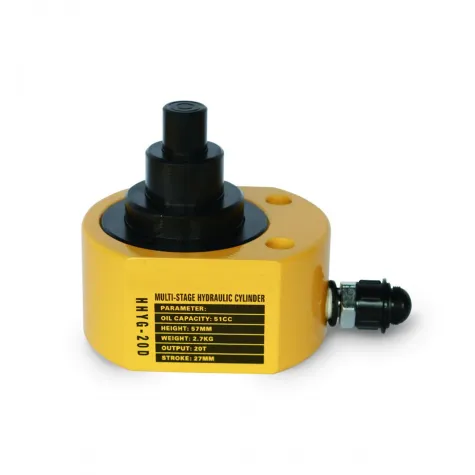

Single Acting Multi Stage Telescopic Low-Height Hydraulic Cylinder / Silinder Hidrolik Pendek 20 Ton - HHYG-20D - BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Download Catalogue
Tweet
Specifications
Model
HHYG-20D
Pump System
Single Acting Hydraulic Pump
Minimum 180cc
Cylinder Capacity @700 Bar
20 Ton
Stage 1: 198KN 11mm Stroke
Stage 2: 67KN 16mm Stroke
Total Stroke
27 mm
Effective Area
Stage 1: 28.3 cm²
Stage 2: 9.6 cm²
Oil Capacity
51 ml
Closed Height
57 mm
Extended Height
84 mm
Outside Diameter
99x76 mm
Inside Diameter
Stage 1: 60 mm
Stage 2: 35 mm
Piston Rod Diameter
Stage 1: 50 mm
Stage 2: 31 mm
Packing Weight
2.7 kg
