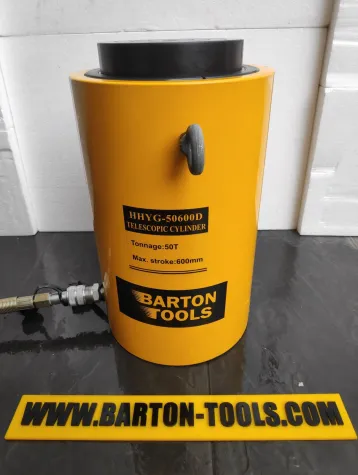

Single Acting Multi Stage Telescopic Long Hydraulic Cylinder / Silinder Hidrolik Panjang 50 Ton 600mm Stroke - HHYG-50600D - BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Download Catalogue
Tweet
Specifications
Model
HHYG-50600D
Pump System
Single Acting Hydraulic Pump
Minimum 35L
Cylinder Capacity @700 Bar
50 Ton
Stage 1: 1984KN 200mm Stroke
Stage 2: 1002KN 200mm Stroke
Stage 3: 496KN 200mm Stroke
Total Stroke
600 mm
Effective Area
Stage 1: 283.4 cm²
Stage 2: 143.1 cm²
Stage 3: 70.8 cm²
Oil Capacity
9500 ml
Closed Height
390 mm
Extended Height
990 mm
Outside Diameter
230 mm
Inside Diameter
Stage 1: 190 mm
Stage 2: 135 mm
Stage 3: 95 mm
Handle
Eye Bolts
Packing Weight
152 kg
