Single Acting Multi Stage Hydraulic Cylinders
Home /
Hydraulic Cylinders /
Single Acting Multi Stage Hydraulic Cylinders

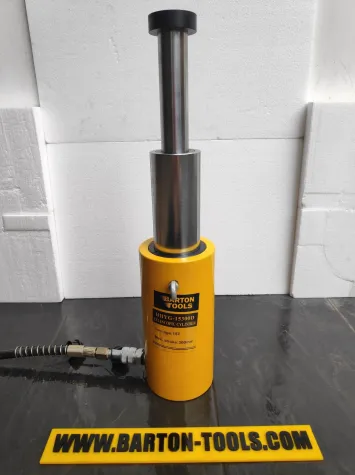

Single Acting Multi Stage Telescopic Long Hydraulic Cylinder / Silinder Hidrolik Panjang 15 Ton 300mm Stroke - HHYG-15300D - BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Download Catalogue
Tweet
Specifications
Model
HHYG-15300D
Pump System
Single Acting Hydraulic Pump
Minimum 2700cc
Cylinder Capacity @700 Bar
15 Ton
Stage 1: 445KN 150mm Stroke
Stage 2: 166KN 150mm Stroke
Total Stroke
300 mm
Effective Area
Stage 1: 63.6 cm²
Stage 2: 23.7 cm²
Oil Capacity
1308 ml
Closed Height
280 mm
Extended Height
580 mm
Outside Diameter
125 mm
Inside Diameter
Stage 1: 90 mm
Stage 2: 55 mm
Handle
Eye Bolts
Packing Weight
28 kg
