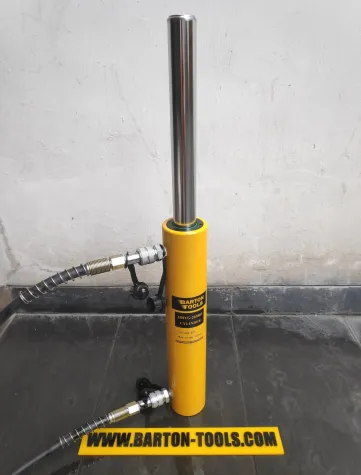

Double Acting Hydraulic Cylinder / Silinder Hidrolik 20 Ton 300mm Stroke - HHYG-20300S - BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Download Catalogue
Tweet
Specifications
Model
HHYG-20300S
Pump System
Double Acting
Cylinder Capacity @700 Bar
20Ton 198KN (Push) 110KN (Pull)
Stroke
300 mm
Effective Area (Push)
28.3 cm²
Effective Area (Pull)
15.7 cm²
Oil Capacity (Push)
848 ml
Oil Capacity (Pull)
471 ml
Closed Height
440 mm
Extended Height
740 mm
Outside Diameter
80 mm
Inside Diameter
60 mm
Piston Rod Diameter
40 mm
Handle
No
Recommended Pump
Double Acting Min. 3L
Packing Weight
15 kg
