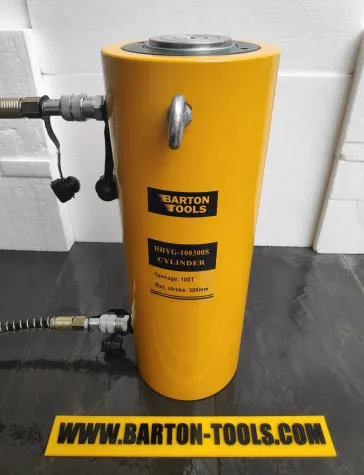

Double Acting Hydraulic Cylinder / Silinder Hidrolik 100 Ton 300mm Stroke - HHYG-100300S - BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Download Catalogue
Tweet
Specifications
Model
HHYG-100300S
Pump System
Double Acting
Cylinder Capacity @700 Bar
100Ton 1002KN (Push) 557KN (Pull)
Stroke
300 mm
Effective Area (Push)
143.1 cm²
Effective Area (Pull)
79.5 cm²
Oil Capacity (Push)
4294 ml
Oil Capacity (Pull)
2384 ml
Closed Height
489 mm
Extended Height
789 mm
Outside Diameter
175 mm
Inside Diameter
135 mm
Piston Rod Diameter
90 mm
Handle
No
Recommended Pump
Double Acting Min. 7L
Packing Weight
73 kg
